Description
PolyLite™ ABS is made with a specialty bulk-polymerized ABS resin, which has significantly lower volatile content compared to traditional ABS resins. It delivers excellent printing quality with minimal odor during printing.

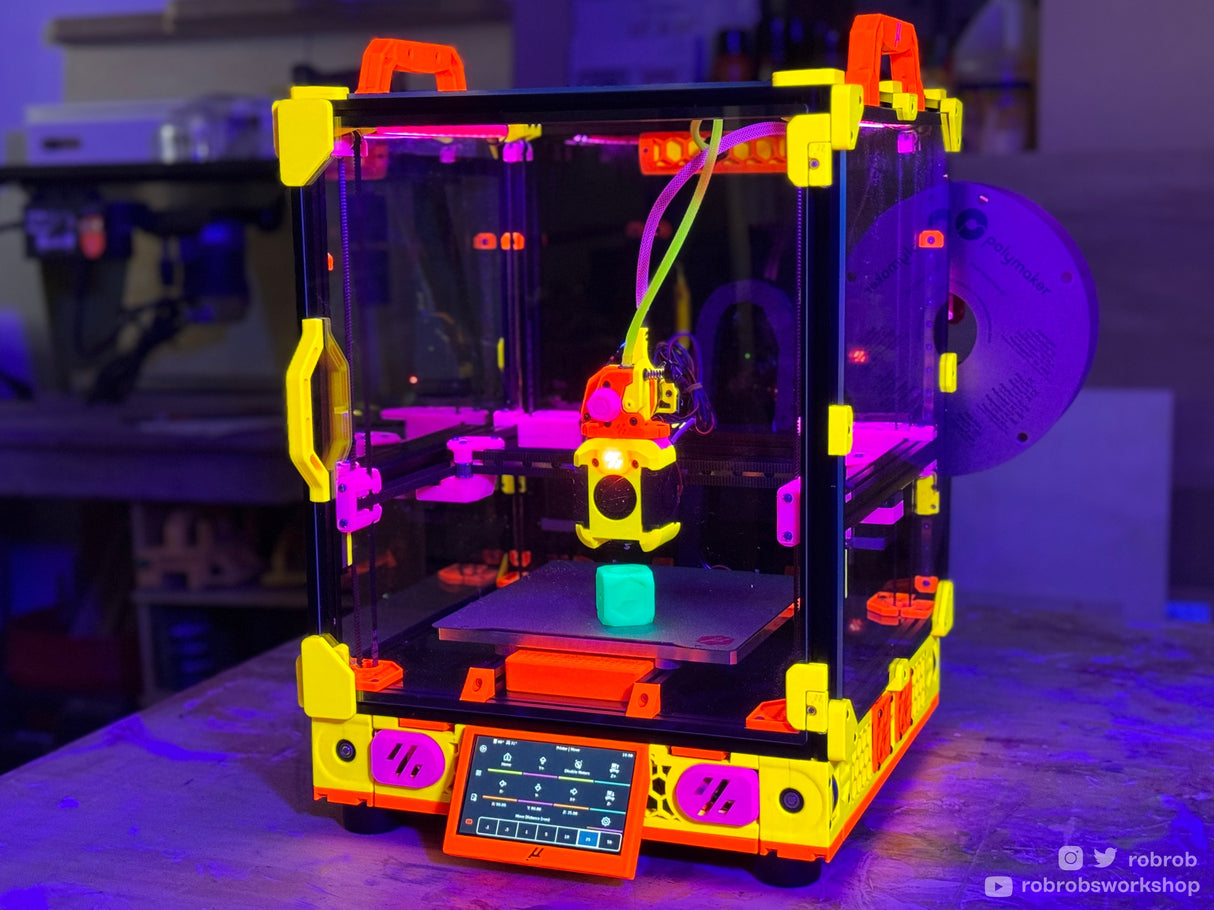

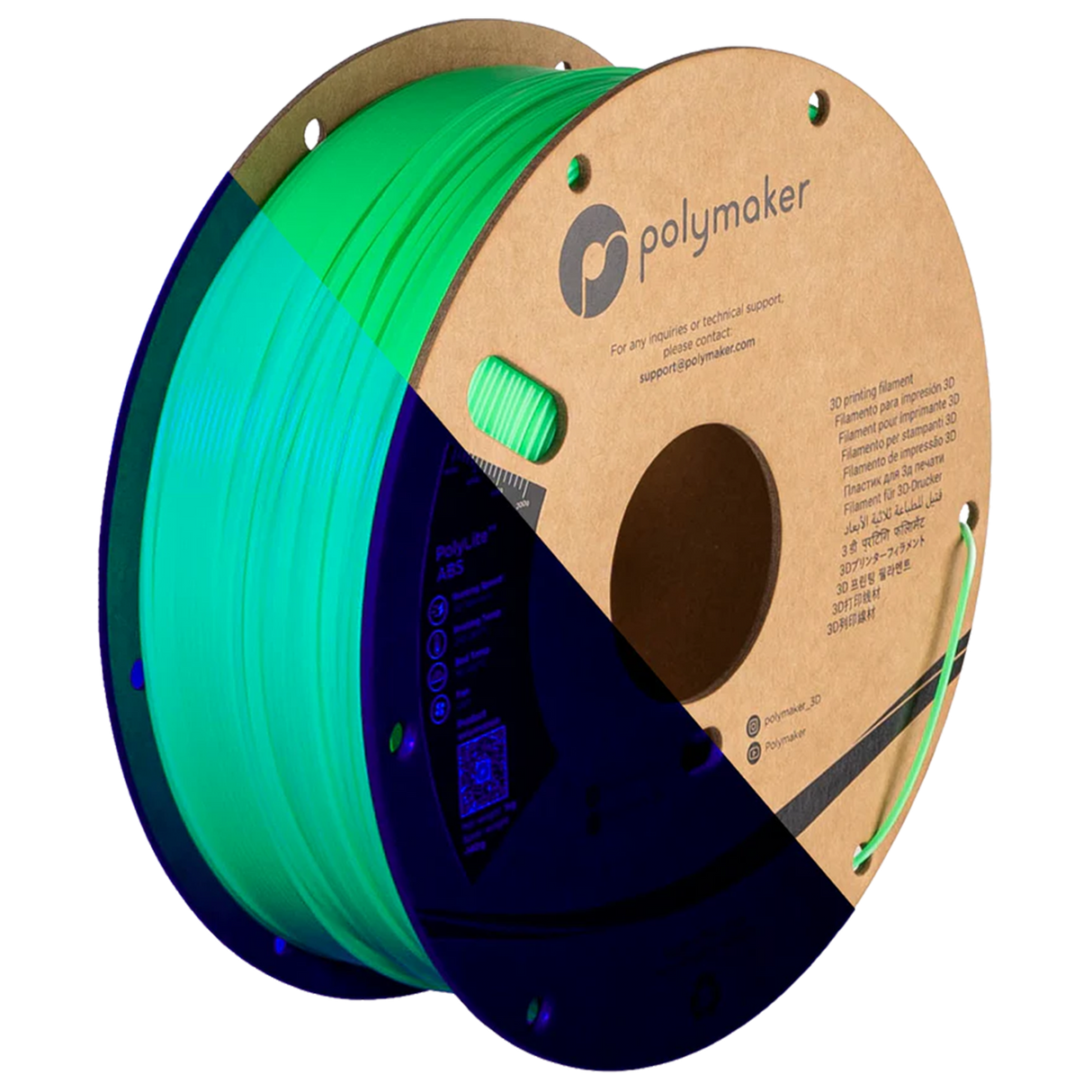

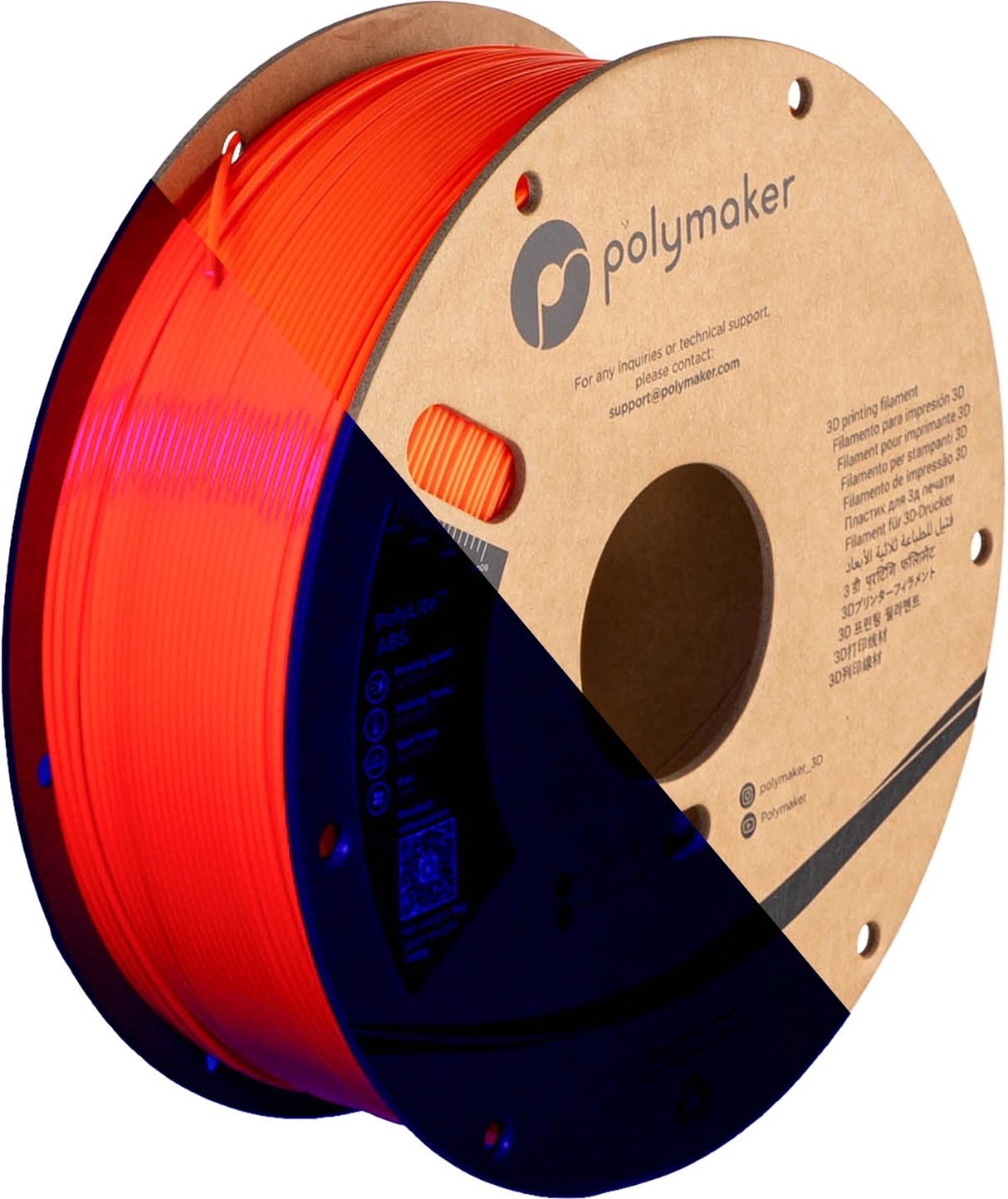

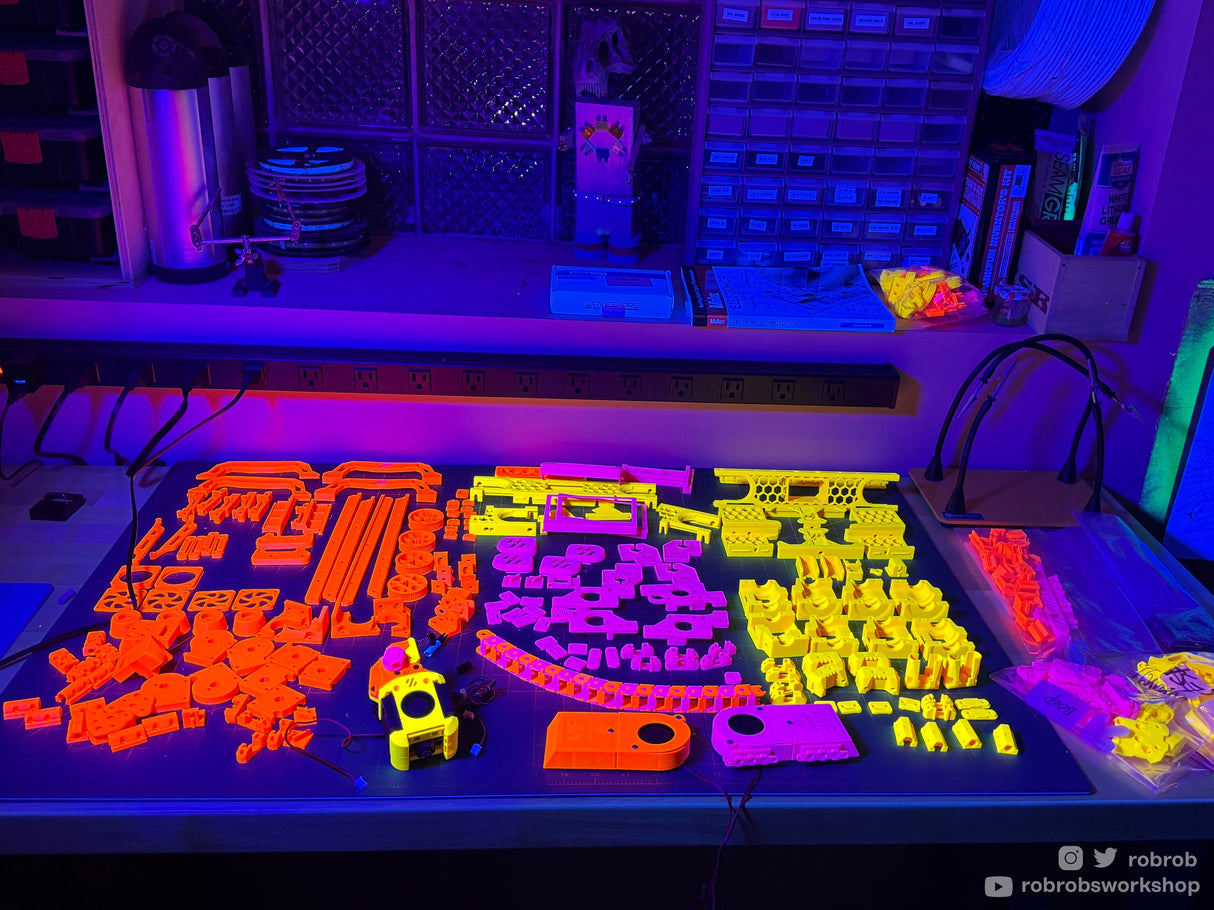

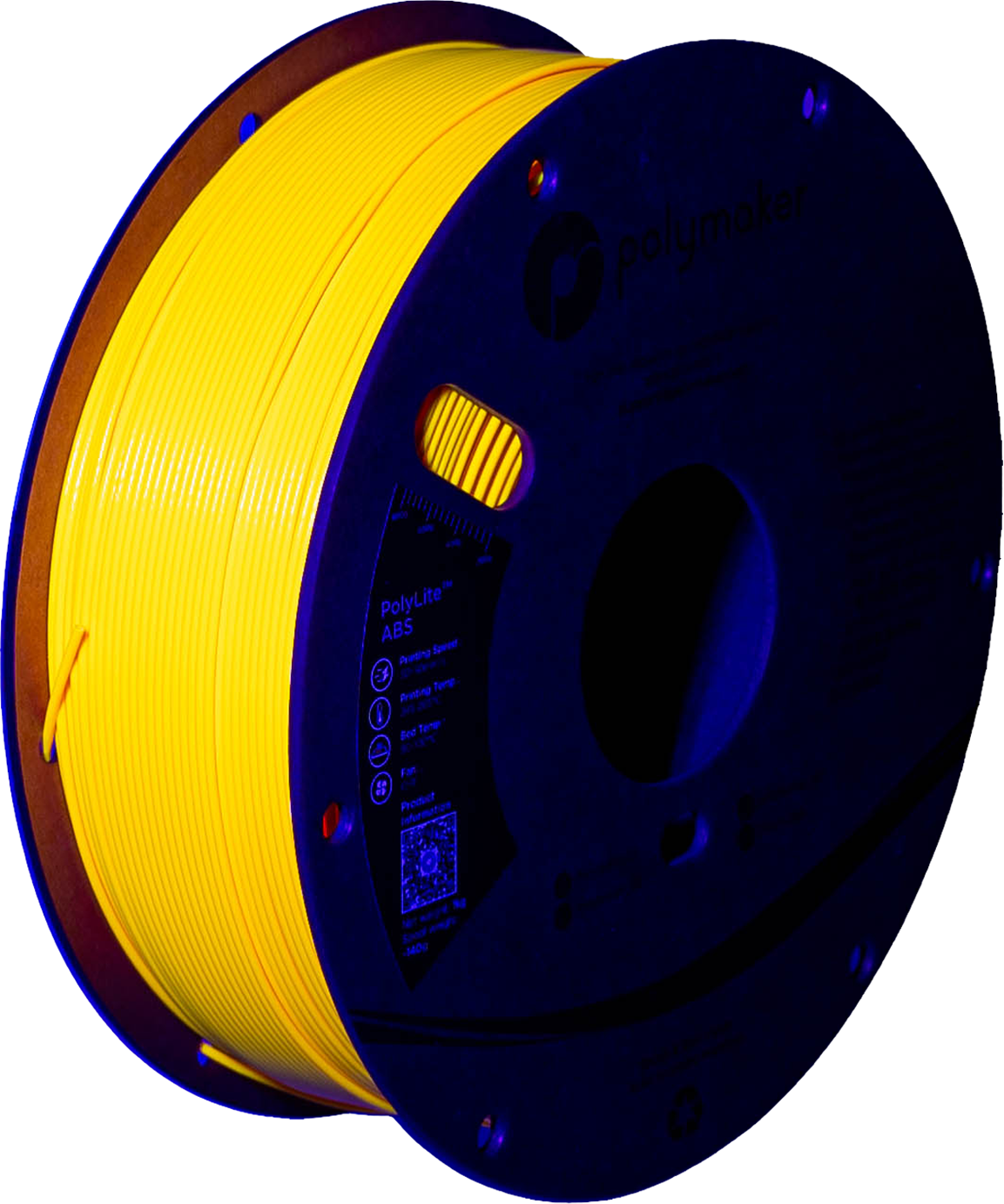

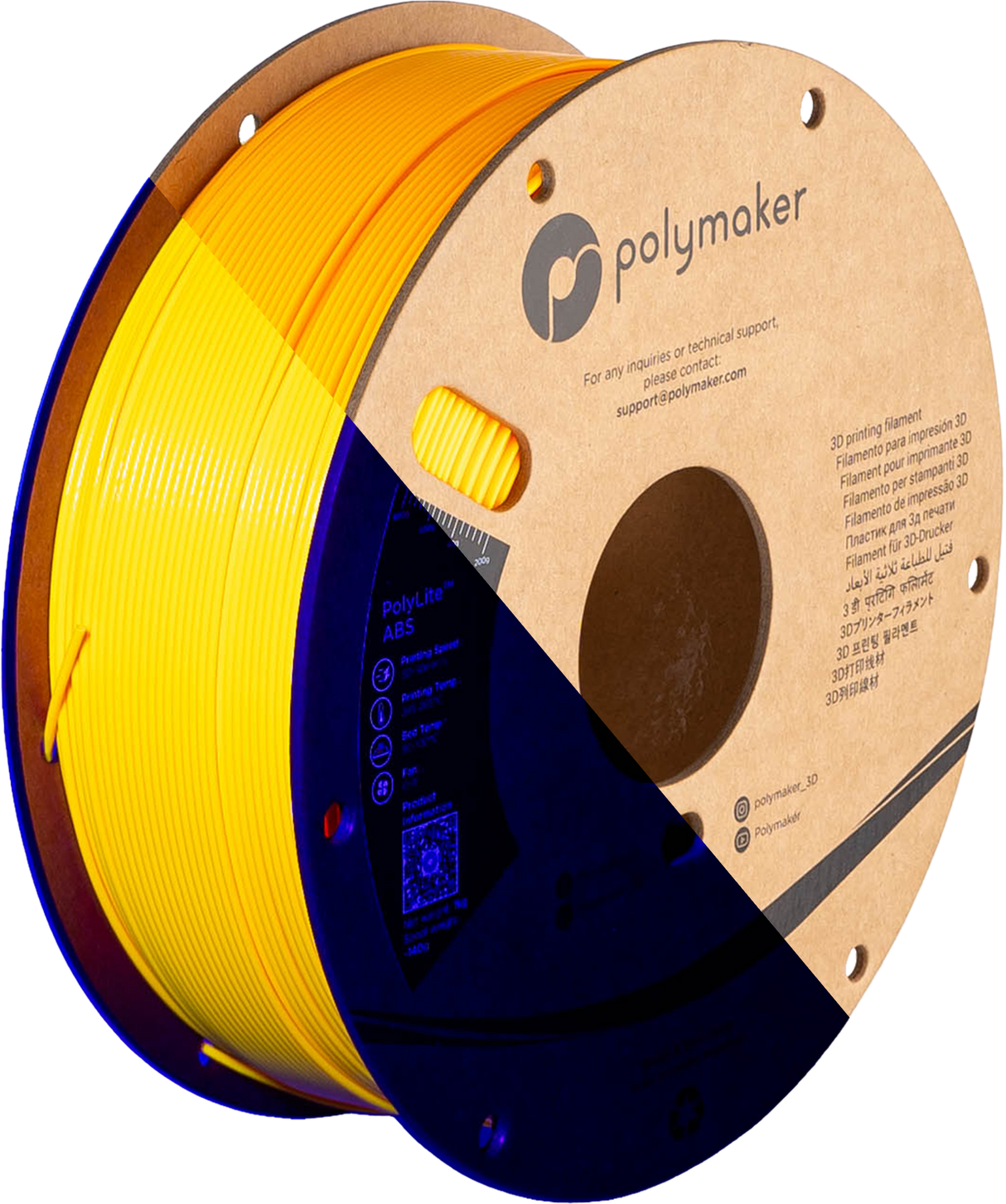

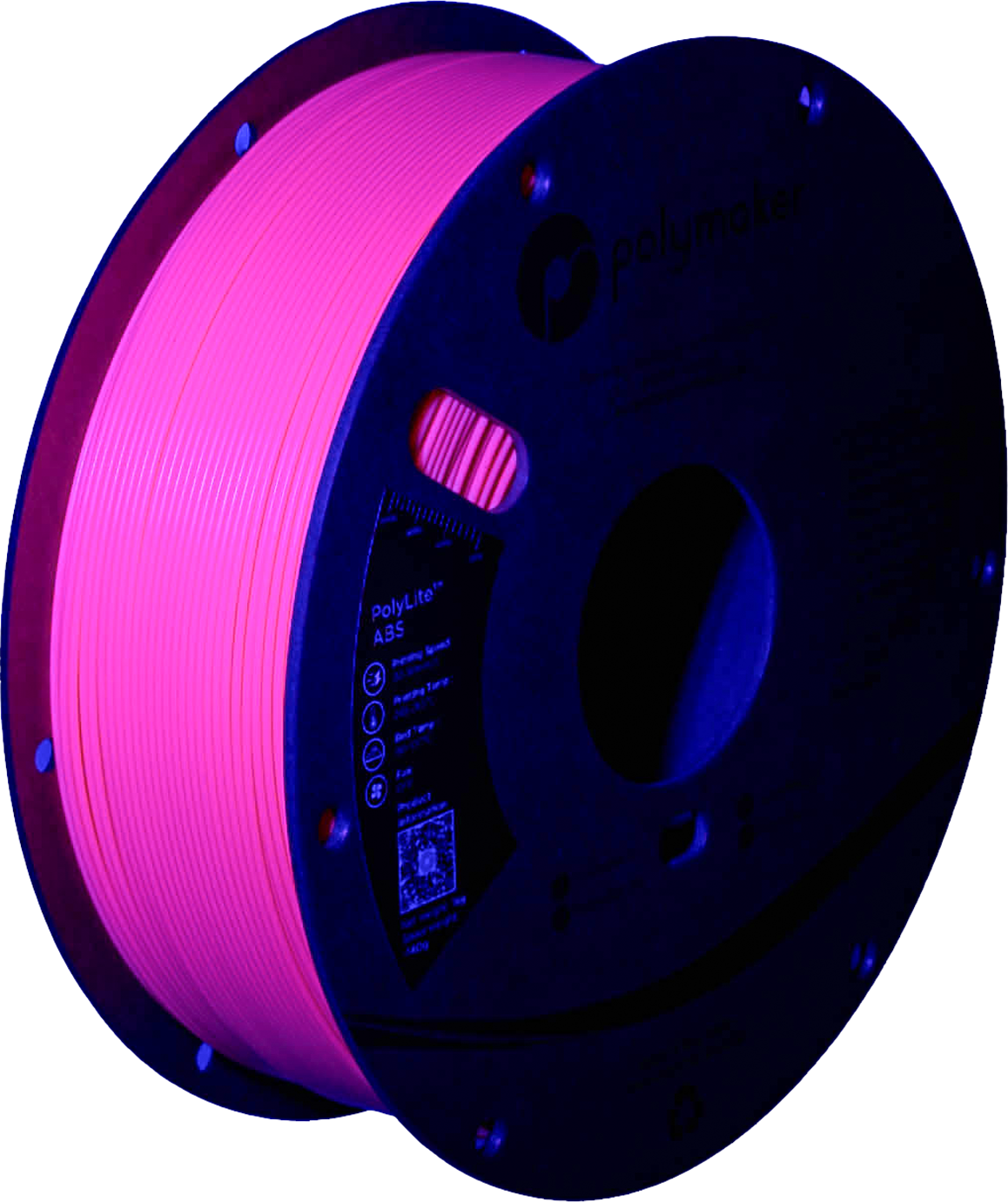

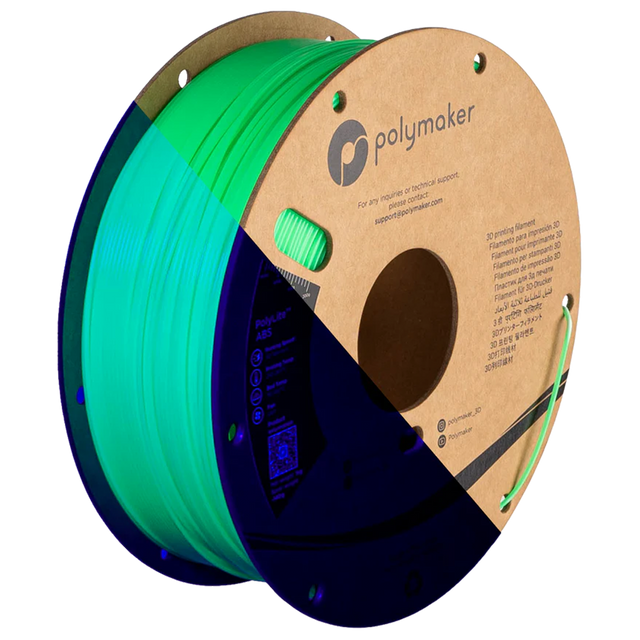

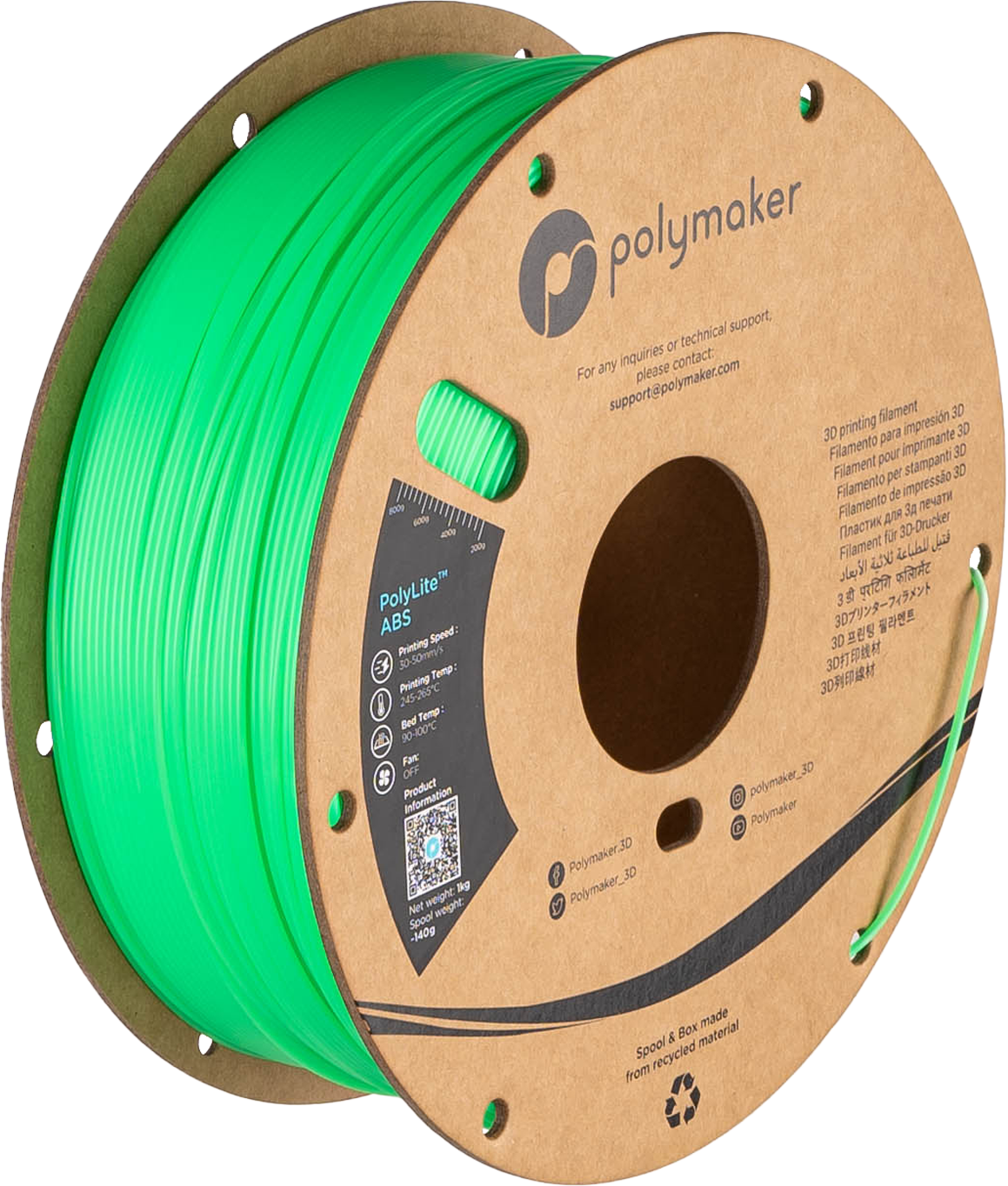

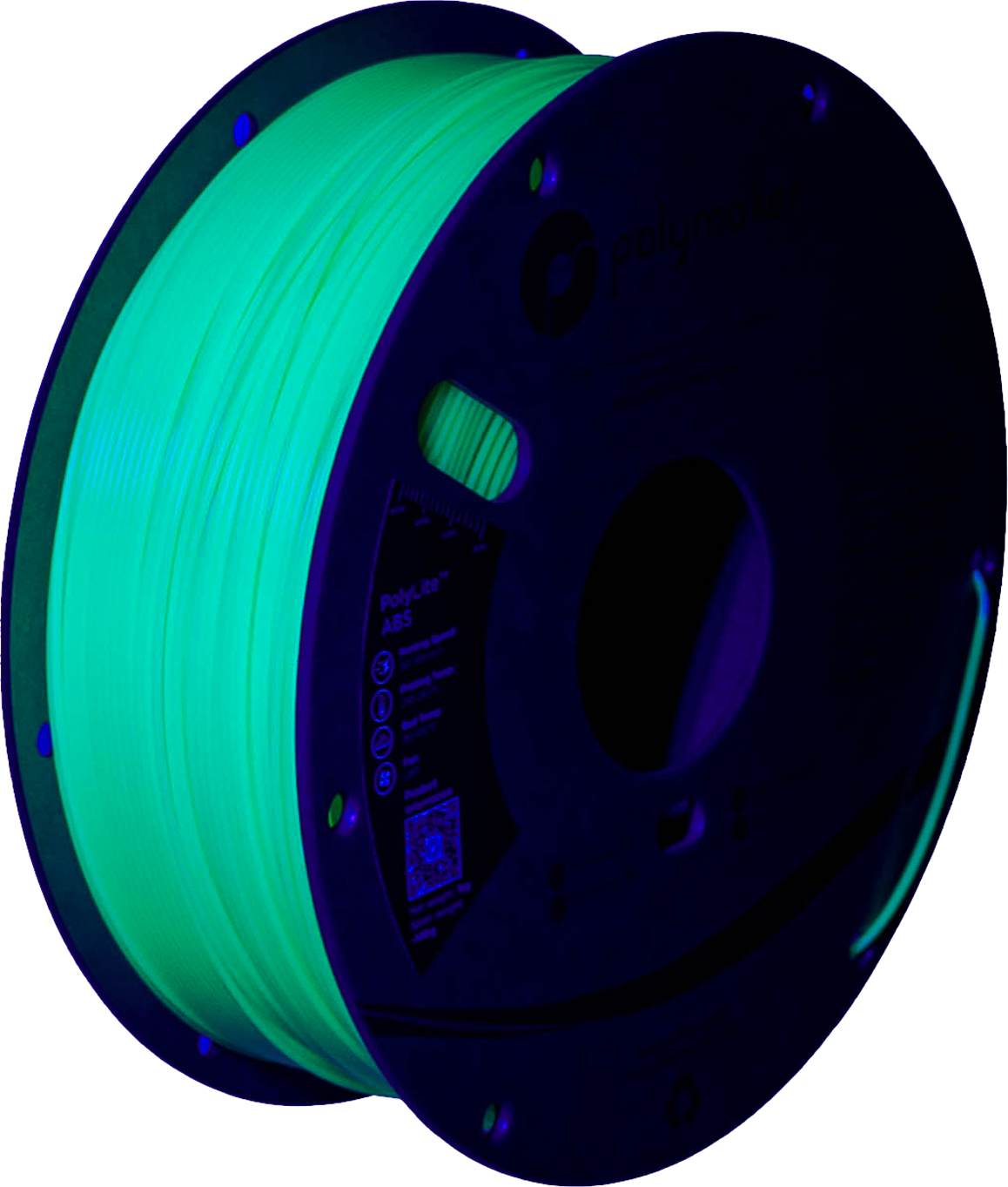

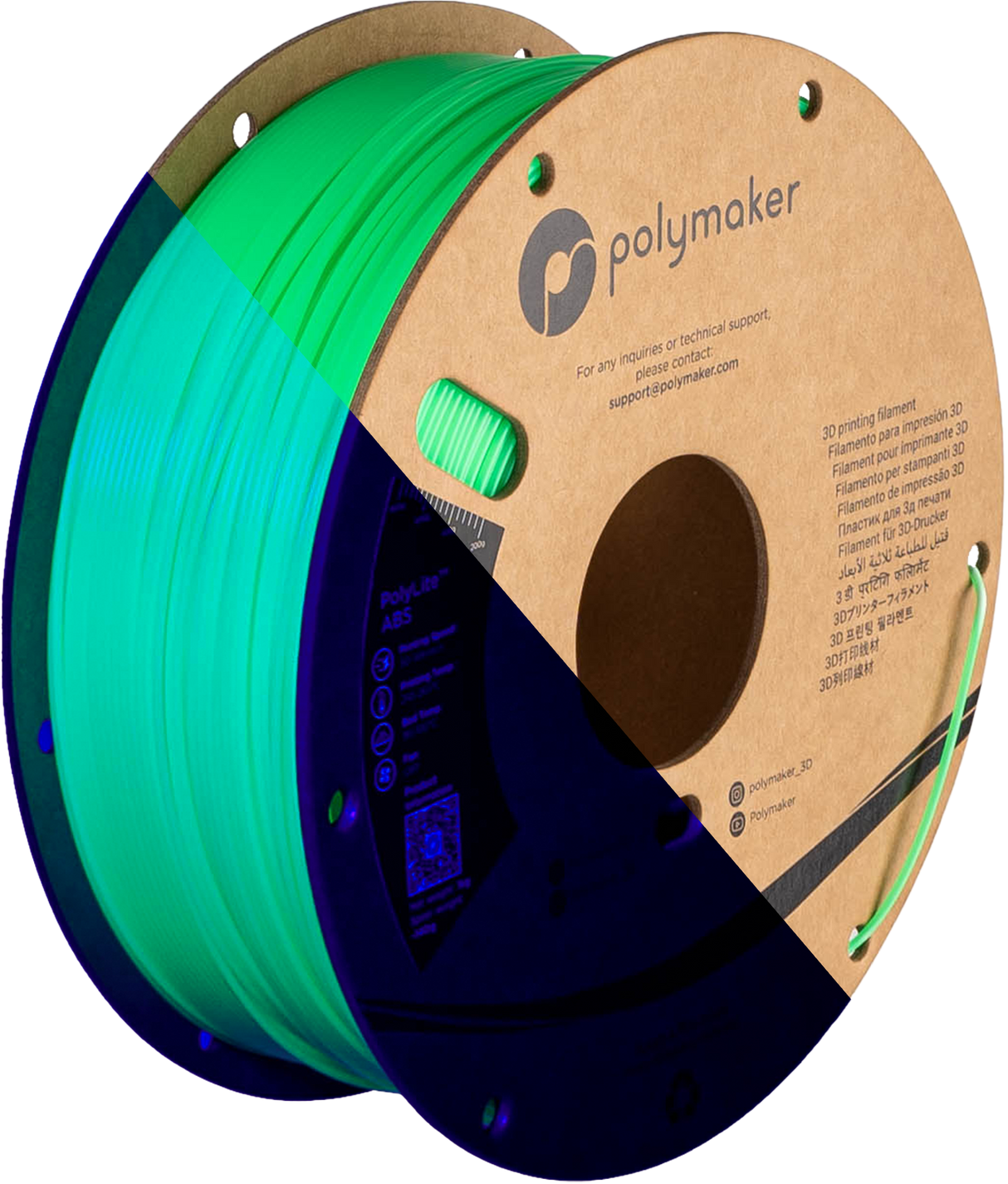

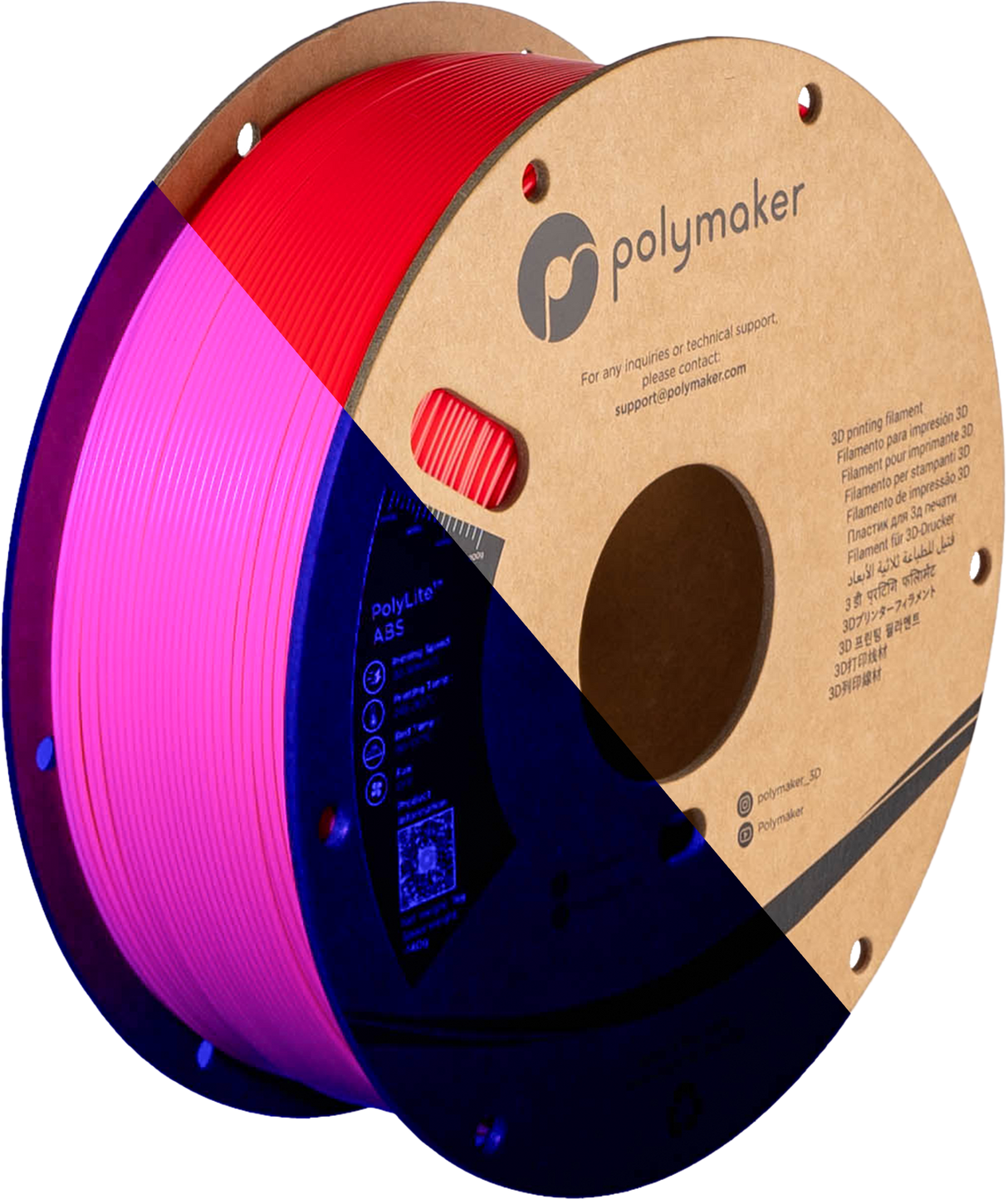

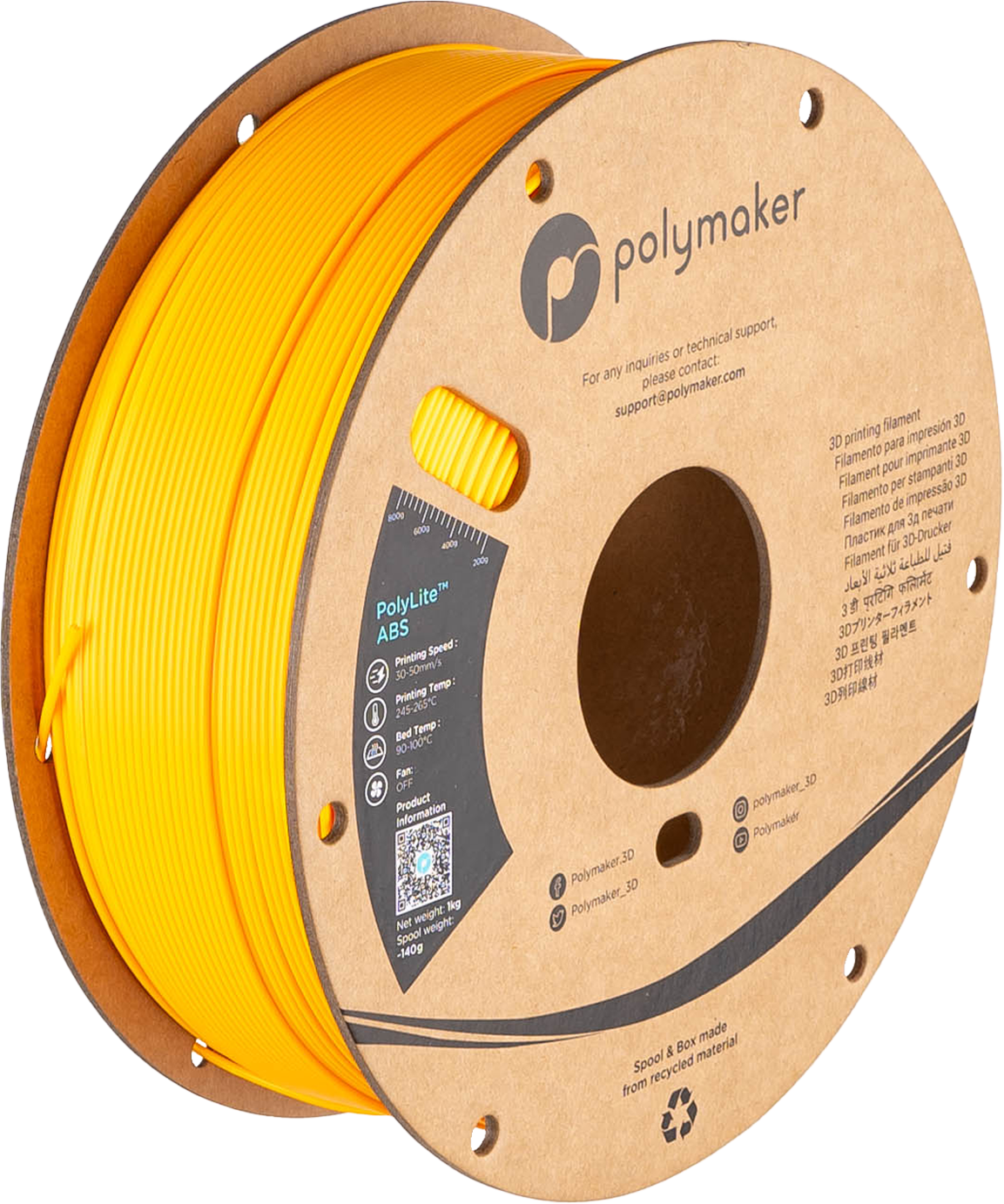

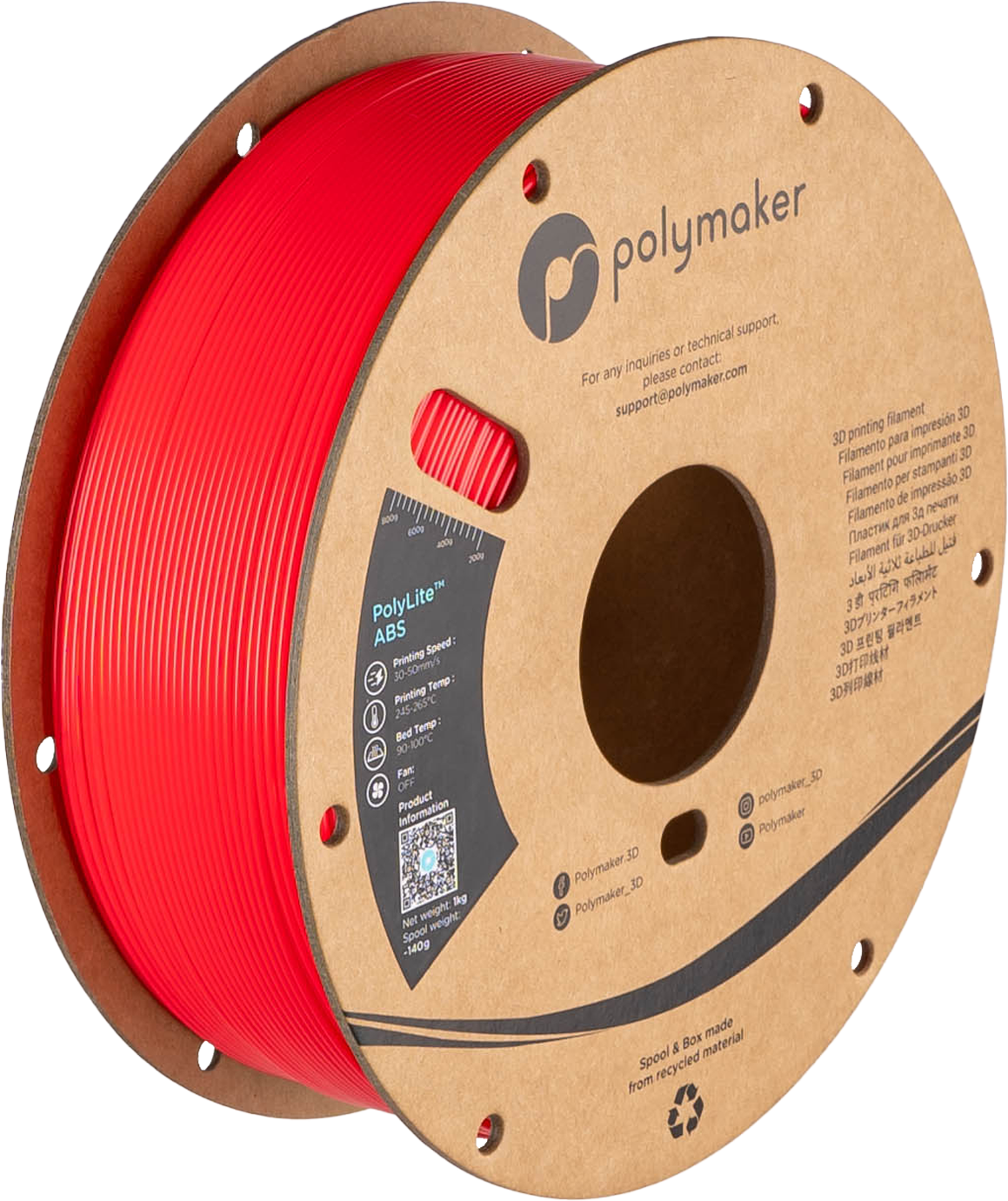

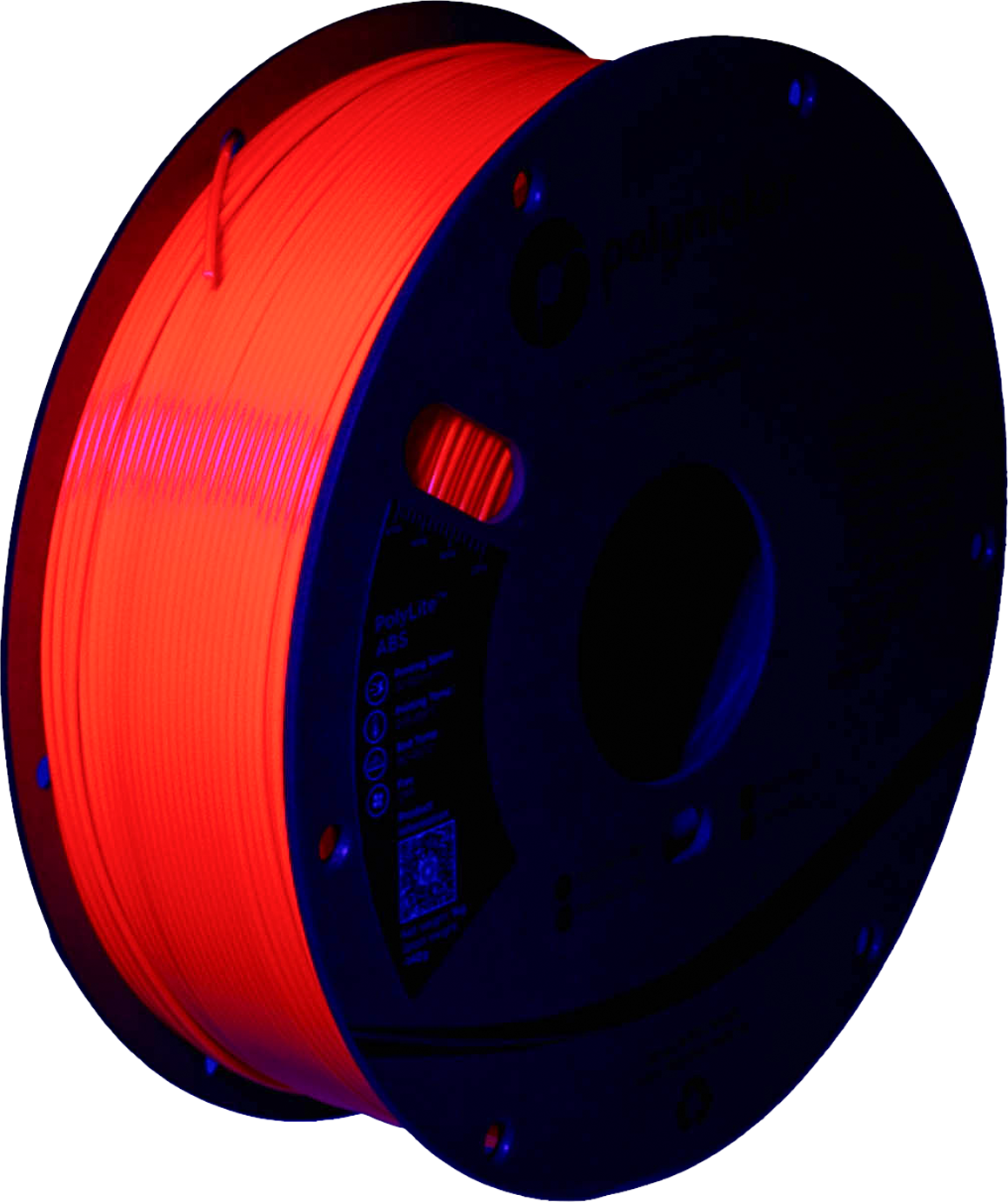

PolyLite™ Neon ABS reacts under blacklight giving a nice and bright neon color!
Depending on the size of the models you are trying to print, PolyLite™ ABS can required enclosed 3D printer, or even actively heated chamber.
In general a non-enclosed 3D printer with 90˚C bed temperature and 260˚C printing temperature can handle models smaller than fist size. For bigger prints you will required an enclosed 3D printer (~40-50˚C), for models bigger than ~15-20cm in any direction, it will require an actively heated chamber (~70˚C+).
Using proper bed adhesion can also help printing larger parts without deformation/warping issue.
We can recommend Magigoo or BuildTak as adhesive and bed surface options.
Printing Temperature: 245˚C - 265˚C
Bed Temperature: 90˚C - 100˚C
Printing Speed: 30mm/s - 50mm/s
Fan: OFF
Direct Drive:
Retraction Distance: 1mm
Retraction Speed: 20mm/s
Indirect Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
Drying Settings: 70˚C for 6h
(Only if the material has absorbed moisture)
Yes, PolyLite™ ABS can be smoothed with acetone.
WARNING: Acetone is a dangerous chemical, please handle it with the necessary safety precautions.
We recommend PolySmooth™ as a safer alternative to create smooth surface models.
0.5kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 190±7g
0.75kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 50.6±2mm
Spool Weight: 125±7g

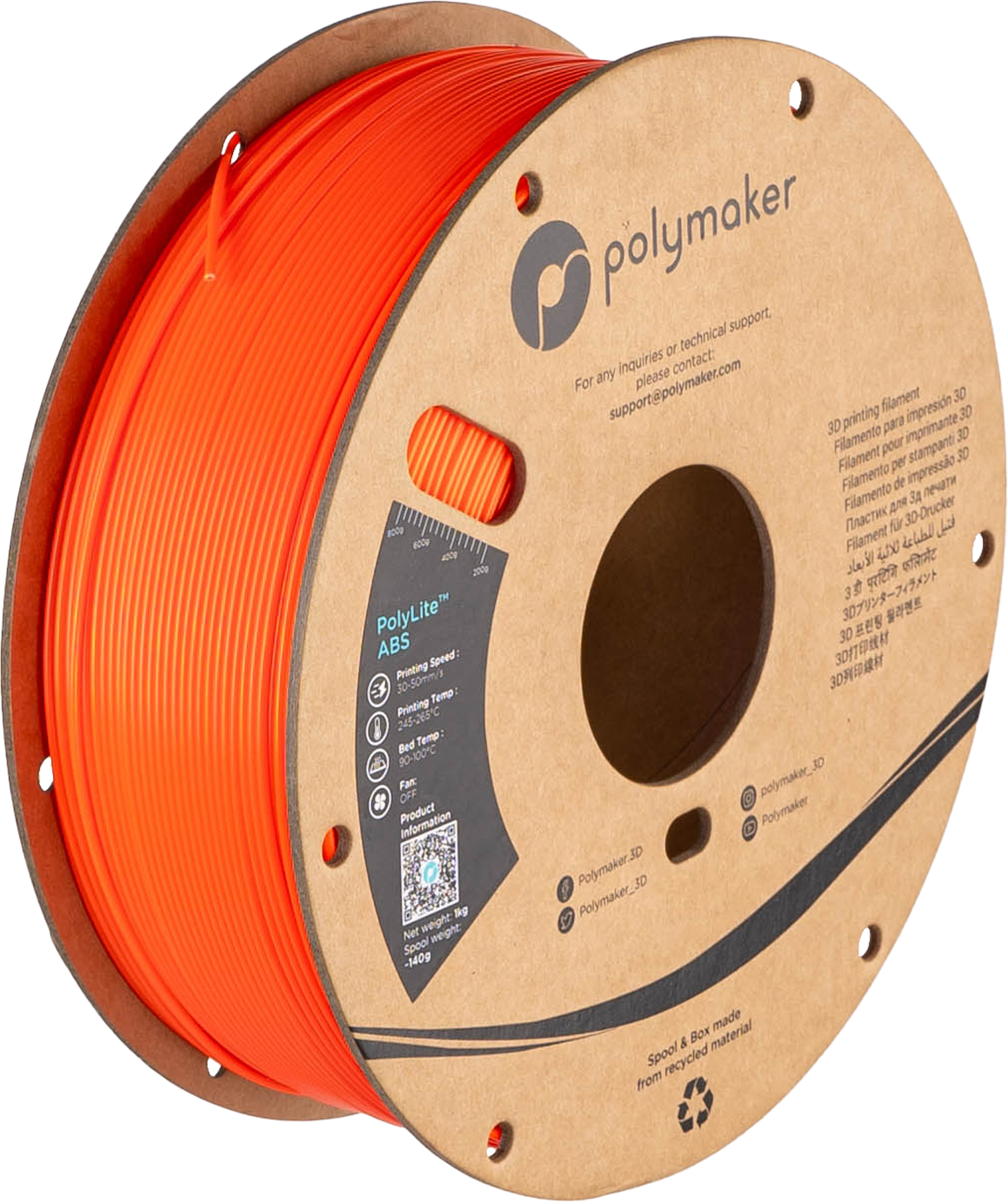

1kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 140±7g
2kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 370±18.5g
3kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 425±21.3g
5kg plastic spool: 32mm/300mm/160mm/819g
Spool Inner Hole Diameter: 32±1mm
Spool Diameter: 300±1mm
Spool Width: 160±1mm
Spool Weight: 819±30g
Spool Material: PP
