Description

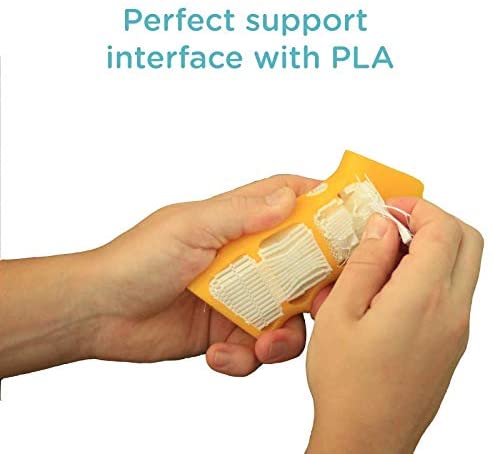

PolySupport™ is a break away support for Polymaker PLA based filaments. It has a perfect interface with PLA, strong enough to support it and easily removable by hand.
We have designed PolySupport™ specifically for PLA. However we had positive customer feedback on using PolySupport™ with PolySmooth™, PolyCast™ and small PolyMax™ PC parts.
PolySupport for PLA
Bed Temperature: 25˚C - 60˚C
Printing Speed: 20mm/s - 40mm/s
Fan: ON
PolySupport for PA12
Printing Temperature: 270˚C - 300˚C
Bed Temperature: 50˚C - 80˚C
Printing Speed: 30mm/s - 60mm/s
Fan: ON
Direct Drive:
Retraction Distance: 1mm
Retraction Speed: 20mm/s
Indirect Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
PolySupport for PLA
Drying Settings: 55˚C for 6h
(Only if the material has absorbed moisture)
PolySupport for PA12
Drying Settings: 100˚C for 8h
(Only if the material has absorbed moisture)
No, PolySupport™ is a breakaway support: it requires mechanical removal.

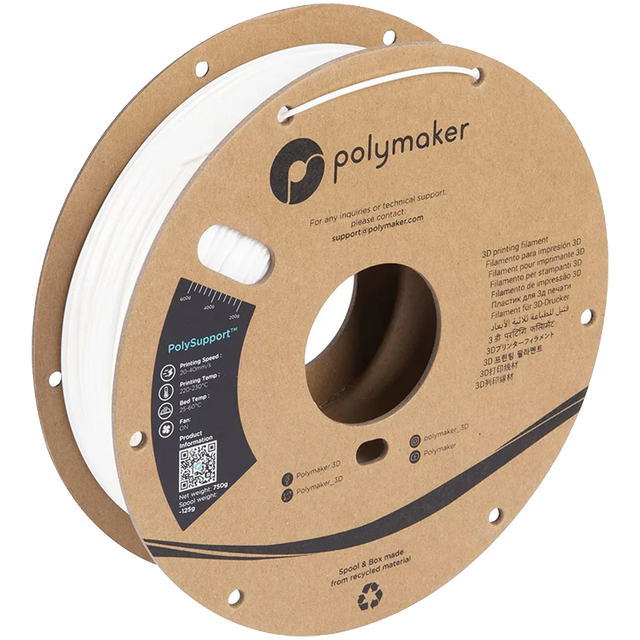

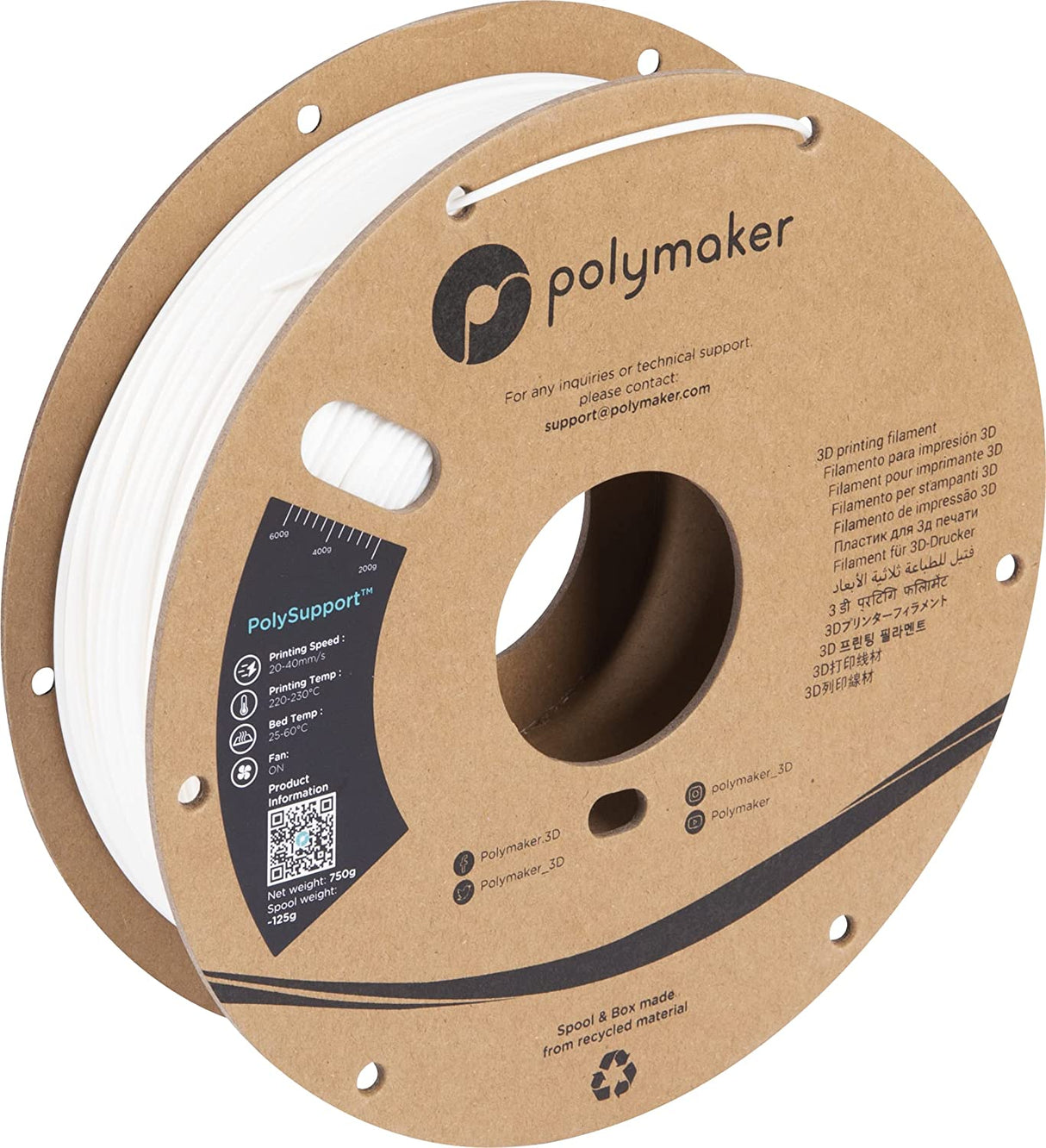

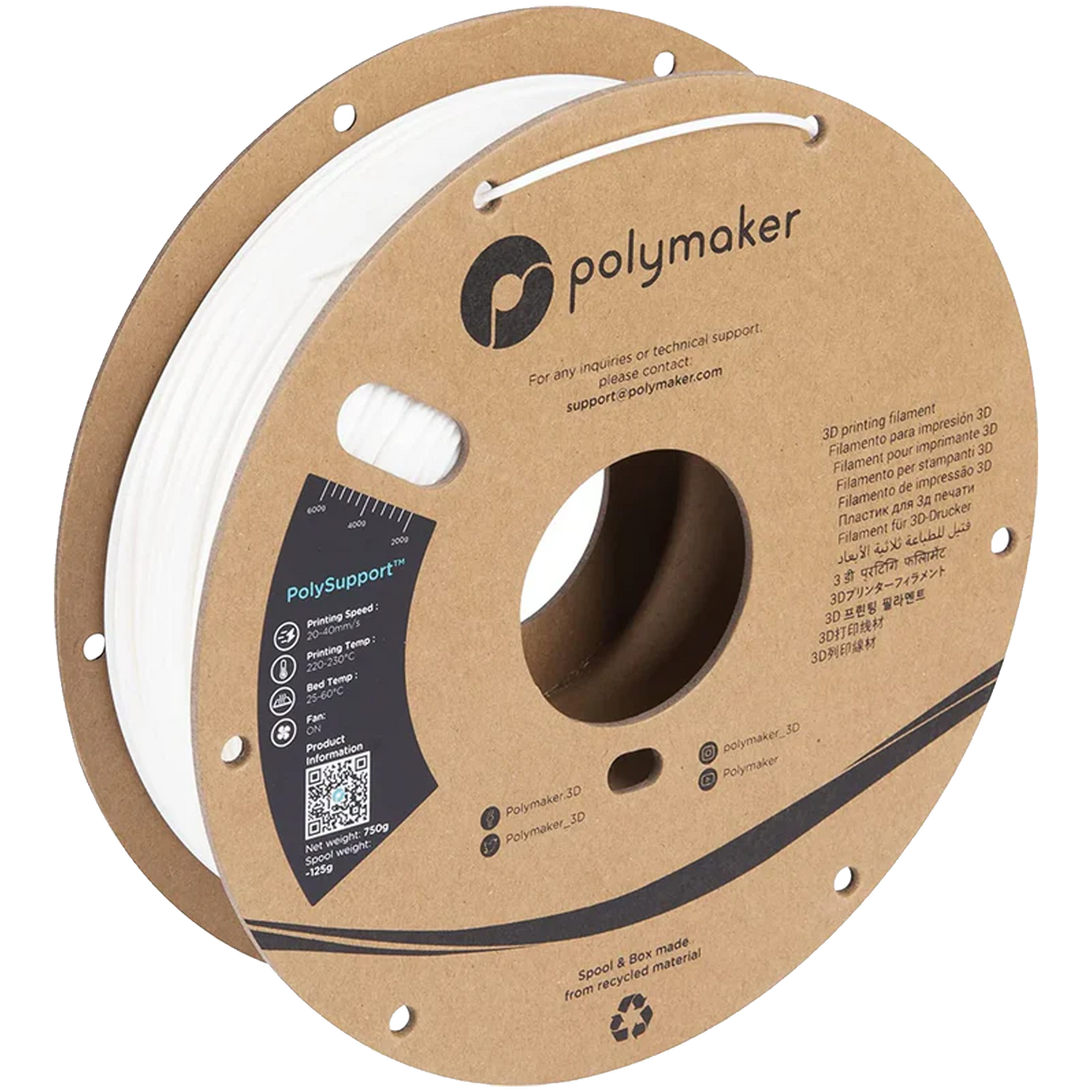

0.5kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 190±7g
0.75kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 50.6±2mm
Spool Weight: 125±7g
1kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 140±7g
2kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 370±18.5g
3kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 425±21.3g
5kg plastic spool: 32mm/300mm/160mm/819g
Spool Inner Hole Diameter: 32±1mm
Spool Diameter: 300±1mm
Spool Width: 160±1mm
Spool Weight: 819±30g
Spool Material: PP
